ARP Cummins 247-4203 Head Stud Kit for the 12 Valve 5.9L Cummins

ARP 247-4203 5.9L Cummins Diesel Head Stud Kit

$480.20

ARP 247-4203 5.9L Cummins Diesel Head Stud Kit

ARP 247-4203 Cummins Diesel Head Stud Kit

ARP Cummins 247-4203 Head Stud Kit for the:

12 valve 5.9L Cummins ARP 247-4203 5.9L

Dodge Cummins Diesel Head Stud Kit ARP 247-4203 Dodge Ram 12V Cummins Diesel Head Stud Kit applications:

  • 1989 to 1994 Dodge 250 5.9L 12V Cummins.
  • 1989 to 1994 Dodge 350 5.9L 12V Cummins.
  • 1994 to 1998 Dodge 2500 5.9L 12V Cummins.
  • 1994 to 1998 Dodge 3500 5.9L 12V Cummins.

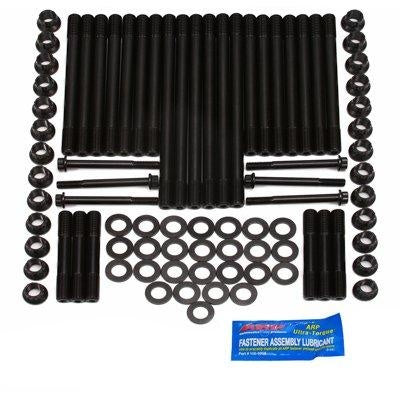

ARP 247-4203 Head Stud Kit for the 12 valve 5.9L Cummins contains:

  • 20 12MM Studs
  • 6 8MM secondary rocker arm pedestal bolts.
  • 26 12 Points Nuts.
  • 26 Parallel Ground Washers.
  • Installation Instructions
  • ARP Ultra Torque assembly lubricant

This Cummins 5.9L Turbo Diesel head Stud Kit features:

  • Constructed from the ARP 2000 Material
  • Rated at a 220,000 PSI Tensile Strength
  • Made In The USA in Santa Paula, CA
  • Finished in a Black oxide coating for corrosion resistance
  • Constructed at an ISO 9001 accredited facility.
  • The finest cylinder head studs available for the 12 Valve Cummins.
  • Cylinder head alignment and gasket mating are a snap when using the ARP 247-4203 Cummins Diesel Head Stud Kit

Note: This ARP 247-4203 Head stud kit is the revised version which addresses the insufficient clearance issues between the rocker arm pedestal and the bottom of the valve cover.

  • engine 5.9L
  • Flow Rate
  • Item Number ARP 247-420312
  • make Dodge
  • model 2500 | 3500
  • year 1989 | 1990 | 1991 | 1992 | 1993 | 1994 | 1995 | 1996 | 1997 | 1998
  • Manufacturer Part No ARP 247-4203
  • Product Application 1989 to 1998 Dodge 5.9L Cummins 12 Valve engines.
