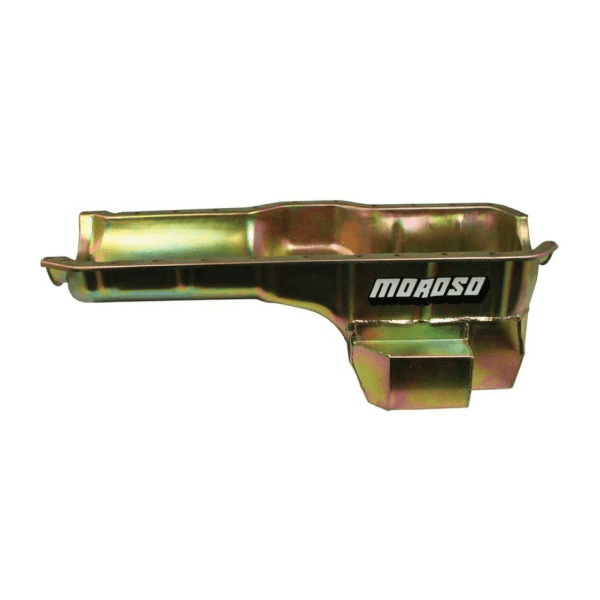

Moroso 27862 Jeep 4.0 Baffled Steel Replacement Oil Pan
The Moroso racing heritage has now designed another High Quality American Made product.
Replacement Jeep Wrangler, Cherokee & Comanche 4.0L Oil Pan with Anti-Slosh Baffles
The Moroso 27862 Replacement Jeep Wrangler 4.0L Oil Pan Benefits:
- Each Jeep Wrangler replacement oil pan is jig welded by hand.
- This replacement pan is block fitted to minimize warping and ensure proper fit and sealing.
- Designed and constructed as a Multi Baffled oil pans.
- This oil pan has a design that removes oil from the crank quickly and efficiently.
- Oil Pan design directs engine oil towards the oil pump pickup.
- This oil pan has two kick outs which allow for 1.25 additional quarts of oil capacity which helps to reduce oil temperature.
The Moroso 27862 Replacement Jeep 4.0L Oil Pan applications:
- 1997 to 2006 Jeep Wrangler TJ
- 1991 to 1995 Jeep Wrangler YJ
- 2004 to 2006 Jeep Wrangler Unlimited TJ
- 1987 to 2001 Jeep Cherokees
- 1987 to 1992 Comanches
Moroso 27862 Replacement Jeep Wrangler 4.0L Oil Pan Features:
- Pan is Jig welded and fitted to minimize warping and ensure proper fit and sealing.
- Multi Baffled oil pans design removes oil from the crank quickly and efficiently.
- The oil pan aims to direct the engine oil towards the oil pump pickup.
- Magnetic drain plug included.
- The enlarged rear oil pan sump provides additional fuel capacity to reduce oil temperature.
- The Three Trap door assembly and the movable anti-slosh baffle is designed to keep the oil contained in oil pump pick up area.
- Rear sump of the oil pan extends out on both sides to hold 1.25 more quarts.
- Bigger surface area helps reduce oil temperature.
- Designed to work with the OEM oil pump and pickup tube.
- The depth of the oil pan remains at the stock dimension
- Allows fitment of aftermarket skid plates.
- Maximizes ground clearance.
- Constructed from heavy duty 16-gauge steel.
- Yellow zinc dichromate finish provides an extreme corrosion resistance.
- No loss or ground clearance with this Moroso Oil Pan installed.
Moroso 27862 Replacement Jeep 4.0L Oil Pan is MADE IN THE USA!
- engine 4.0L
- Flow Rate
- Item Number Moroso 2786230
- make Jeep
- model Cherokee | Comanche | Wrangler JK
- year 1987 | 1988 | 1989 | 1990 | 1991 | 1992 | 1993 | 1994 | 1995 | 1996 | 1997 | 1998 | 1998.5 | 1999 | 2000 | 2001 | 2002 | 2003 | 2004 | 2005 | 2006
- Manufacturer Part No 27862
- Product Application Select 1987 to 2006 Jeeps with the 4.0L engine
- height 16
- width 15
- brand Moroso
- Part Number
- manufacturer Moroso
- Beam Pattern
- Product Note
